File System Connector

File System Connector

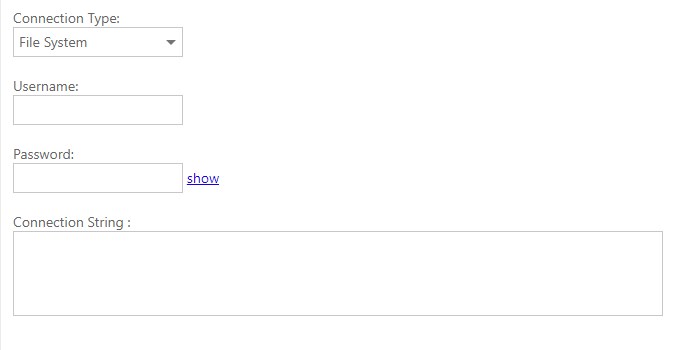

File System Origin

The File System Connector reads all files from a folder specified in the Directory field. The Username and Password fields are not used. Filter can be used to filter for certain file names/extensions. To search for all files with an extension of "txt, use the filter "*.txt". To search for all files with "Work" anywhere in the filename, use the filter "*Work*"

The Connector returns standard data in the first 12 fields returned:

  • CreationTime
  • FullDirectoryName
  • DirectoryRelative
  • DirectoryName
  • Extension
  • FullName
  • IsReadOnly
  • LastAccessTime
  • LastWriteTime
  • Length
  • Name
  • LastWriteTime

The Connector returns all information available for the File in json format in the ExtendedProperties field. Rather than add a column for each potential property, we went with a more dynamic method of using one column called “ExtenededProperties” and formatted the data as JSON.

It’s very easy to parse this and then pull out the data you need in Starfish.

First, create a Before Each Row VBScript Operation which loads the chunk of JSON into the parser:

Sub VBScriptProcedure
    ParseJSON("@@ORG:ExtendedProperties@@")
End Sub

Then on your field, pull out the value you want by name..

Function ScriptedField
    ScriptedField=GetJSON("Authors")
End Function

Function ScriptedField
    ScriptedField=GetJSON("Title")
End Function

etc..
If a value doesn’t exist for a particular file, it’ll just return “”.

Reading and manipulating a File

The connector itself can not read a file, but vbScript or C# code can be used to read and manipulate files.

Reading a file:

Function ScriptedField
    Dim text
    text = ExtractText("C:\test.txt")
    ScriptedField = text
End Function

Moving a file:

Function ScriptedField
    MoveFile("C:\TestDir1\test.txt","C:\TestDir2\test.txt")
End Function

You can also rename the file with this method.

Processing a huge amount of files

Processing a huge amount of files can cause performance issues. We started with a folder with 40,000 tiny .txt files in it and it ran the first 10,000 or so without problem and then slowed to a crawl. The solution for me was to process a file and then move the file to a new folder. In this way, I could easily process the files in increments of 5000.

MIME Types

When importing files to SugarCRM I found that I had to supply the file's MIME type. To do this, I built an xref of file extensions to MIME types, file_extension_to_mime.ids:

.x3d|application/vnd.hzn-3d-crossword
.3gp|video/3gpp
.3g2|video/3gpp2
.mseq|application/vnd.mseq
.pwn|application/vnd.3m.post-it-notes
.plb|application/vnd.3gpp.pic-bw-large
.psb|application/vnd.3gpp.pic-bw-small
.pvb|application/vnd.3gpp.pic-bw-var
.tcap|application/vnd.3gpp2.tcap
.7z|application/x-7z-compressed
.abw|application/x-abiword
.ace|application/x-ace-compressed
.acc|application/vnd.americandynamics.acc
.acu|application/vnd.acucobol
.atc|application/vnd.acucorp
.adp|audio/adpcm
.aab|application/x-authorware-bin
.aam|application/x-authorware-map
.aas|application/x-authorware-seg
.air|application/vnd.adobe.air-application-installer-package+zip
.swf|application/x-shockwave-flash
.fxp|application/vnd.adobe.fxp
.pdf|application/pdf
.PDF|application/pdf
.ppd|application/vnd.cups-ppd
.dir|application/x-director
.xdp|application/vnd.adobe.xdp+xml
.xfdf|application/vnd.adobe.xfdf
.aac|audio/x-aac
.ahead|application/vnd.ahead.space
.azf|application/vnd.airzip.filesecure.azf
.azs|application/vnd.airzip.filesecure.azs
.azw|application/vnd.amazon.ebook
.ami|application/vnd.amiga.ami
N/A|application/andrew-inset
.apk|application/vnd.android.package-archive
.cii|application/vnd.anser-web-certificate-issue-initiation
.fti|application/vnd.anser-web-funds-transfer-initiation
.atx|application/vnd.antix.game-component
.mpkg|application/vnd.apple.installer+xml
.aw|application/applixware
.les|application/vnd.hhe.lesson-player
.swi|application/vnd.aristanetworks.swi
.s|text/x-asm
.atomcat|application/atomcat+xml
.atomsvc|application/atomsvc+xml
.atom, .xml|application/atom+xml
.ac|application/pkix-attr-cert
.aif|audio/x-aiff
.avi|video/x-msvideo
.aep|application/vnd.audiograph
.dxf|image/vnd.dxf
.dwf|model/vnd.dwf
.par|text/plain-bas
.bcpio|application/x-bcpio
.bin|application/octet-stream
.bmp|image/bmp
.torrent|application/x-bittorrent
.cod|application/vnd.rim.cod
.mpm|application/vnd.blueice.multipass
.bmi|application/vnd.bmi
.sh|application/x-sh
.btif|image/prs.btif
.rep|application/vnd.businessobjects
.bz|application/x-bzip
.bz2|application/x-bzip2
.csh|application/x-csh
.c|text/x-c
.cdxml|application/vnd.chemdraw+xml
.css|text/css
.cdx|chemical/x-cdx
.cml|chemical/x-cml
.csml|chemical/x-csml
.cdbcmsg|application/vnd.contact.cmsg
.cla|application/vnd.claymore
.c4g|application/vnd.clonk.c4group
.sub|image/vnd.dvb.subtitle
.cdmia|application/cdmi-capability
.cdmic|application/cdmi-container
.cdmid|application/cdmi-domain
.cdmio|application/cdmi-object
.cdmiq|application/cdmi-queue
.c11amc|application/vnd.cluetrust.cartomobile-config
.c11amz|application/vnd.cluetrust.cartomobile-config-pkg
.ras|image/x-cmu-raster
.dae|model/vnd.collada+xml
.csv|text/csv
.CSV|text/csv
.cpt|application/mac-compactpro
.wmlc|application/vnd.wap.wmlc
.cgm|image/cgm
.ice|x-conference/x-cooltalk
.cmx|image/x-cmx
.xar|application/vnd.xara
.cmc|application/vnd.cosmocaller
.cpio|application/x-cpio
.clkx|application/vnd.crick.clicker
.clkk|application/vnd.crick.clicker.keyboard
.clkp|application/vnd.crick.clicker.palette
.clkt|application/vnd.crick.clicker.template
.clkw|application/vnd.crick.clicker.wordbank
.wbs|application/vnd.criticaltools.wbs+xml
.cryptonote|application/vnd.rig.cryptonote
.cif|chemical/x-cif
.cmdf|chemical/x-cmdf
.cu|application/cu-seeme
.cww|application/prs.cww
.curl|text/vnd.curl
.dcurl|text/vnd.curl.dcurl
.mcurl|text/vnd.curl.mcurl
.scurl|text/vnd.curl.scurl
.car|application/vnd.curl.car
.pcurl|application/vnd.curl.pcurl
.cmp|application/vnd.yellowriver-custom-menu
.dssc|application/dssc+der
.xdssc|application/dssc+xml
.deb|application/x-debian-package
.uva|audio/vnd.dece.audio
.uvi|image/vnd.dece.graphic
.uvh|video/vnd.dece.hd
.uvm|video/vnd.dece.mobile
.uvu|video/vnd.uvvu.mp4
.uvp|video/vnd.dece.pd
.uvs|video/vnd.dece.sd
.uvv|video/vnd.dece.video
.dvi|application/x-dvi
.seed|application/vnd.fdsn.seed
.dtb|application/x-dtbook+xml
.res|application/x-dtbresource+xml
.ait|application/vnd.dvb.ait
.svc|application/vnd.dvb.service
.eol|audio/vnd.digital-winds
.djvu|image/vnd.djvu
.dtd|application/xml-dtd
.mlp|application/vnd.dolby.mlp
.wad|application/x-doom
.dpg|application/vnd.dpgraph
.dra|audio/vnd.dra
.dfac|application/vnd.dreamfactory
.dts|audio/vnd.dts
.dtshd|audio/vnd.dts.hd
.dwg|image/vnd.dwg
.geo|application/vnd.dynageo
.es|application/ecmascript
.mag|application/vnd.ecowin.chart
.mmr|image/vnd.fujixerox.edmics-mmr
.rlc|image/vnd.fujixerox.edmics-rlc
.exi|application/exi
.mgz|application/vnd.proteus.magazine
.epub|application/epub+zip
.eml|message/rfc822
.nml|application/vnd.enliven
.xpr|application/vnd.is-xpr
.xif|image/vnd.xiff
.xfdl|application/vnd.xfdl
.emma|application/emma+xml
.ez2|application/vnd.ezpix-album
.ez3|application/vnd.ezpix-package
.fst|image/vnd.fst
.fvt|video/vnd.fvt
.fbs|image/vnd.fastbidsheet
.fe_launch|application/vnd.denovo.fcselayout-link
.f4v|video/x-f4v
.flv|video/x-flv
.fpx|image/vnd.fpx
.npx|image/vnd.net-fpx
.flx|text/vnd.fmi.flexstor
.fli|video/x-fli
.ftc|application/vnd.fluxtime.clip
.fdf|application/vnd.fdf
.f|text/x-fortran
.mif|application/vnd.mif
.fm|application/vnd.framemaker
.fh|image/x-freehand
.fsc|application/vnd.fsc.weblaunch
.fnc|application/vnd.frogans.fnc
.ltf|application/vnd.frogans.ltf
.ddd|application/vnd.fujixerox.ddd
.xdw|application/vnd.fujixerox.docuworks
.xbd|application/vnd.fujixerox.docuworks.binder
.oas|application/vnd.fujitsu.oasys
.oa2|application/vnd.fujitsu.oasys2
.oa3|application/vnd.fujitsu.oasys3
.fg5|application/vnd.fujitsu.oasysgp
.bh2|application/vnd.fujitsu.oasysprs
.spl|application/x-futuresplash
.fzs|application/vnd.fuzzysheet
.g3|image/g3fax
.gmx|application/vnd.gmx
.gtw|model/vnd.gtw
.txd|application/vnd.genomatix.tuxedo
.ggb|application/vnd.geogebra.file
.ggt|application/vnd.geogebra.tool
.gdl|model/vnd.gdl
.gex|application/vnd.geometry-explorer
.gxt|application/vnd.geonext
.g2w|application/vnd.geoplan
.g3w|application/vnd.geospace
.gsf|application/x-font-ghostscript
.bdf|application/x-font-bdf
.gtar|application/x-gtar
.texinfo|application/x-texinfo
.gnumeric|application/x-gnumeric
.kml|application/vnd.google-earth.kml+xml
.kmz|application/vnd.google-earth.kmz
.gqf|application/vnd.grafeq
.gif|image/gif
.gv|text/vnd.graphviz
.gac|application/vnd.groove-account
.ghf|application/vnd.groove-help
.gim|application/vnd.groove-identity-message
.grv|application/vnd.groove-injector
.gtm|application/vnd.groove-tool-message
.tpl|application/vnd.groove-tool-template
.vcg|application/vnd.groove-vcard
.h261|video/h261
.h263|video/h263
.h264|video/h264
.hpid|application/vnd.hp-hpid
.hps|application/vnd.hp-hps
.hdf|application/x-hdf
.rip|audio/vnd.rip
.hbci|application/vnd.hbci
.jlt|application/vnd.hp-jlyt
.pcl|application/vnd.hp-pcl
.hpgl|application/vnd.hp-hpgl
.hvs|application/vnd.yamaha.hv-script
.hvd|application/vnd.yamaha.hv-dic
.hvp|application/vnd.yamaha.hv-voice
.sfd-hdstx|application/vnd.hydrostatix.sof-data
.stk|application/hyperstudio
.hal|application/vnd.hal+xml
.html|text/html
.htm|text/html
.irm|application/vnd.ibm.rights-management
.sc|application/vnd.ibm.secure-container
.ics|text/calendar
.icc|application/vnd.iccprofile
.ico|image/x-icon
.igl|application/vnd.igloader
.ief|image/ief
.ivp|application/vnd.immervision-ivp
.ivu|application/vnd.immervision-ivu
.rif|application/reginfo+xml
.3dml|text/vnd.in3d.3dml
.spot|text/vnd.in3d.spot
.igs|model/iges
.i2g|application/vnd.intergeo
.cdy|application/vnd.cinderella
.xpw|application/vnd.intercon.formnet
.fcs|application/vnd.isac.fcs
.ipfix|application/ipfix
.cer|application/pkix-cert
.pki|application/pkixcmp
.crl|application/pkix-crl
.pkipath|application/pkix-pkipath
.igm|application/vnd.insors.igm
.rcprofile|application/vnd.ipunplugged.rcprofile
.irp|application/vnd.irepository.package+xml
.jad|text/vnd.sun.j2me.app-descriptor
.jar|application/java-archive
.class|application/java-vm
.jnlp|application/x-java-jnlp-file
.ser|application/java-serialized-object
.java|text/x-java-source,java
.js|application/javascript
.json|application/json
.joda|application/vnd.joost.joda-archive
.jpm|video/jpm
.jpeg, .jpg|image/jpeg
.jpgv|video/jpeg
.ktz|application/vnd.kahootz
.mmd|application/vnd.chipnuts.karaoke-mmd
.karbon|application/vnd.kde.karbon
.chrt|application/vnd.kde.kchart
.kfo|application/vnd.kde.kformula
.flw|application/vnd.kde.kivio
.kon|application/vnd.kde.kontour
.kpr|application/vnd.kde.kpresenter
.ksp|application/vnd.kde.kspread
.kwd|application/vnd.kde.kword
.htke|application/vnd.kenameaapp
.kia|application/vnd.kidspiration
.kne|application/vnd.kinar
.sse|application/vnd.kodak-descriptor
.lasxml|application/vnd.las.las+xml
.latex|application/x-latex
.lbd|application/vnd.llamagraphics.life-balance.desktop
.lbe|application/vnd.llamagraphics.life-balance.exchange+xml
.jam|application/vnd.jam
0.123|application/vnd.lotus-1-2-3
.apr|application/vnd.lotus-approach
.pre|application/vnd.lotus-freelance
.nsf|application/vnd.lotus-notes
.org|application/vnd.lotus-organizer
.scm|application/vnd.lotus-screencam
.lwp|application/vnd.lotus-wordpro
.lvp|audio/vnd.lucent.voice
.m3u|audio/x-mpegurl
.m4v|video/x-m4v
.hqx|application/mac-binhex40
.portpkg|application/vnd.macports.portpkg
.mgp|application/vnd.osgeo.mapguide.package
.mrc|application/marc
.mrcx|application/marcxml+xml
.mxf|application/mxf
.nbp|application/vnd.wolfram.player
.ma|application/mathematica
.mathml|application/mathml+xml
.mbox|application/mbox
.mc1|application/vnd.medcalcdata
.mscml|application/mediaservercontrol+xml
.cdkey|application/vnd.mediastation.cdkey
.mwf|application/vnd.mfer
.mfm|application/vnd.mfmp
.msh|model/mesh
.mads|application/mads+xml
.mets|application/mets+xml
.mods|application/mods+xml
.meta4|application/metalink4+xml
.potm|application/vnd.ms-powerpoint.template.macroenabled.12
.docm|application/vnd.ms-word.document.macroenabled.12
.dotm|application/vnd.ms-word.template.macroenabled.12
.mcd|application/vnd.mcd
.flo|application/vnd.micrografx.flo
.igx|application/vnd.micrografx.igx
.es3|application/vnd.eszigno3+xml
.mdb|application/x-msaccess
.asf|video/x-ms-asf
.exe|application/x-msdownload
.cil|application/vnd.ms-artgalry
.cab|application/vnd.ms-cab-compressed
.ims|application/vnd.ms-ims
.application|application/x-ms-application
.clp|application/x-msclip
.mdi|image/vnd.ms-modi
.eot|application/vnd.ms-fontobject
.xls|application/vnd.ms-excel
.XLS|application/vnd.ms-excel
.xlam|application/vnd.ms-excel.addin.macroenabled.12
.xlsb|application/vnd.ms-excel.sheet.binary.macroenabled.12
.xltm|application/vnd.ms-excel.template.macroenabled.12
.xlsm|application/vnd.ms-excel.sheet.macroenabled.12
.chm|application/vnd.ms-htmlhelp
.crd|application/x-mscardfile
.lrm|application/vnd.ms-lrm
.mvb|application/x-msmediaview
.mny|application/x-msmoney
.pptx|application/vnd.openxmlformats-officedocument.presentationml.presentation
.sldx|application/vnd.openxmlformats-officedocument.presentationml.slide
.ppsx|application/vnd.openxmlformats-officedocument.presentationml.slideshow
.potx|application/vnd.openxmlformats-officedocument.presentationml.template
.xlsx|application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
.xltx|application/vnd.openxmlformats-officedocument.spreadsheetml.template
.docx|application/vnd.openxmlformats-officedocument.wordprocessingml.document
.dotx|application/vnd.openxmlformats-officedocument.wordprocessingml.template
.obd|application/x-msbinder
.thmx|application/vnd.ms-officetheme
.onetoc|application/onenote
.pya|audio/vnd.ms-playready.media.pya
.pyv|video/vnd.ms-playready.media.pyv
.ppt|application/vnd.ms-powerpoint
.ppam|application/vnd.ms-powerpoint.addin.macroenabled.12
.sldm|application/vnd.ms-powerpoint.slide.macroenabled.12
.pptm|application/vnd.ms-powerpoint.presentation.macroenabled.12
.ppsm|application/vnd.ms-powerpoint.slideshow.macroenabled.12
.mpp|application/vnd.ms-project
.pub|application/x-mspublisher
.scd|application/x-msschedule
.xap|application/x-silverlight-app
.stl|application/vnd.ms-pki.stl
.cat|application/vnd.ms-pki.seccat
.vsd|application/vnd.visio
.wm|video/x-ms-wm
.wma|audio/x-ms-wma
.wax|audio/x-ms-wax
.wmx|video/x-ms-wmx
.wmd|application/x-ms-wmd
.wpl|application/vnd.ms-wpl
.wmz|application/x-ms-wmz
.wmv|video/x-ms-wmv
.wvx|video/x-ms-wvx
.wmf|application/x-msmetafile
.trm|application/x-msterminal
.doc|application/msword
.DOC|application/msword
.wri|application/x-mswrite
.wps|application/vnd.ms-works
.xbap|application/x-ms-xbap
.xps|application/vnd.ms-xpsdocument
.mid|audio/midi
.mpy|application/vnd.ibm.minipay
.afp|application/vnd.ibm.modcap
.rms|application/vnd.jcp.javame.midlet-rms
.tmo|application/vnd.tmobile-livetv
.prc|application/x-mobipocket-ebook
.mbk|application/vnd.mobius.mbk
.dis|application/vnd.mobius.dis
.plc|application/vnd.mobius.plc
.mqy|application/vnd.mobius.mqy
.msl|application/vnd.mobius.msl
.txf|application/vnd.mobius.txf
.daf|application/vnd.mobius.daf
.fly|text/vnd.fly
.mpc|application/vnd.mophun.certificate
.mpn|application/vnd.mophun.application
.mj2|video/mj2
.mpga|audio/mpeg
.mxu|video/vnd.mpegurl
.mpeg|video/mpeg
.m21|application/mp21
.mp4a|audio/mp4
.mp4|video/mp4
.mp4|application/mp4
.m3u8|application/vnd.apple.mpegurl
.mus|application/vnd.musician
.msty|application/vnd.muvee.style
.mxml|application/xv+xml
.ngdat|application/vnd.nokia.n-gage.data
.n-gage|application/vnd.nokia.n-gage.symbian.install
.ncx|application/x-dtbncx+xml
.nc|application/x-netcdf
.nlu|application/vnd.neurolanguage.nlu
.dna|application/vnd.dna
.nnd|application/vnd.noblenet-directory
.nns|application/vnd.noblenet-sealer
.nnw|application/vnd.noblenet-web
.rpst|application/vnd.nokia.radio-preset
.rpss|application/vnd.nokia.radio-presets
.n3|text/n3
.edm|application/vnd.novadigm.edm
.edx|application/vnd.novadigm.edx
.ext|application/vnd.novadigm.ext
.gph|application/vnd.flographit
.ecelp4800|audio/vnd.nuera.ecelp4800
.ecelp7470|audio/vnd.nuera.ecelp7470
.ecelp9600|audio/vnd.nuera.ecelp9600
.oda|application/oda
.ogx|application/ogg
.oga|audio/ogg
.ogv|video/ogg
.dd2|application/vnd.oma.dd2+xml
.oth|application/vnd.oasis.opendocument.text-web
.opf|application/oebps-package+xml
.qbo|application/vnd.intu.qbo
.oxt|application/vnd.openofficeorg.extension
.osf|application/vnd.yamaha.openscoreformat
.weba|audio/webm
.webm|video/webm
.odc|application/vnd.oasis.opendocument.chart
.otc|application/vnd.oasis.opendocument.chart-template
.odb|application/vnd.oasis.opendocument.database
.odf|application/vnd.oasis.opendocument.formula
.odft|application/vnd.oasis.opendocument.formula-template
.odg|application/vnd.oasis.opendocument.graphics
.otg|application/vnd.oasis.opendocument.graphics-template
.odi|application/vnd.oasis.opendocument.image
.oti|application/vnd.oasis.opendocument.image-template
.odp|application/vnd.oasis.opendocument.presentation
.otp|application/vnd.oasis.opendocument.presentation-template
.ods|application/vnd.oasis.opendocument.spreadsheet
.ots|application/vnd.oasis.opendocument.spreadsheet-template
.odt|application/vnd.oasis.opendocument.text
.odm|application/vnd.oasis.opendocument.text-master
.ott|application/vnd.oasis.opendocument.text-template
.ktx|image/ktx
.sxc|application/vnd.sun.xml.calc
.stc|application/vnd.sun.xml.calc.template
.sxd|application/vnd.sun.xml.draw
.std|application/vnd.sun.xml.draw.template
.sxi|application/vnd.sun.xml.impress
.sti|application/vnd.sun.xml.impress.template
.sxm|application/vnd.sun.xml.math
.sxw|application/vnd.sun.xml.writer
.sxg|application/vnd.sun.xml.writer.global
.stw|application/vnd.sun.xml.writer.template
.otf|application/x-font-otf
.osfpvg|application/vnd.yamaha.openscoreformat.osfpvg+xml
.dp|application/vnd.osgi.dp
.pdb|application/vnd.palm
.p|text/x-pascal
.paw|application/vnd.pawaafile
.pclxl|application/vnd.hp-pclxl
.efif|application/vnd.picsel
.pcx|image/x-pcx
.psd|image/vnd.adobe.photoshop
.prf|application/pics-rules
.pic|image/x-pict
.chat|application/x-chat
.p10|application/pkcs10
.p12|application/x-pkcs12
.p7m|application/pkcs7-mime
.p7s|application/pkcs7-signature
.p7r|application/x-pkcs7-certreqresp
.p7b|application/x-pkcs7-certificates
.p8|application/pkcs8
.plf|application/vnd.pocketlearn
.pnm|image/x-portable-anymap
.pbm|image/x-portable-bitmap
.pcf|application/x-font-pcf
.pfr|application/font-tdpfr
.pgn|application/x-chess-pgn
.pgm|image/x-portable-graymap
.png|image/png
.ppm|image/x-portable-pixmap
.pskcxml|application/pskc+xml
.pml|application/vnd.ctc-posml
.ai|application/postscript
.pfa|application/x-font-type1
.pbd|application/vnd.powerbuilder6
|application/pgp-encrypted
.pgp|application/pgp-signature
.box|application/vnd.previewsystems.box
.ptid|application/vnd.pvi.ptid1
.pls|application/pls+xml
.str|application/vnd.pg.format
.ei6|application/vnd.pg.osasli
.dsc|text/prs.lines.tag
.psf|application/x-font-linux-psf
.qps|application/vnd.publishare-delta-tree
.wg|application/vnd.pmi.widget
.qxd|application/vnd.quark.quarkxpress
.esf|application/vnd.epson.esf
.msf|application/vnd.epson.msf
.ssf|application/vnd.epson.ssf
.qam|application/vnd.epson.quickanime
.qfx|application/vnd.intu.qfx
.qt|video/quicktime
.rar|application/x-rar-compressed
.ram|audio/x-pn-realaudio
.rmp|audio/x-pn-realaudio-plugin
.rsd|application/rsd+xml
.rm|application/vnd.rn-realmedia
.bed|application/vnd.realvnc.bed
.mxl|application/vnd.recordare.musicxml
.musicxml|application/vnd.recordare.musicxml+xml
.rnc|application/relax-ng-compact-syntax
.rdz|application/vnd.data-vision.rdz
.rdf|application/rdf+xml
.rp9|application/vnd.cloanto.rp9
.jisp|application/vnd.jisp
.rtf|application/rtf
.rtx|text/richtext
.link66|application/vnd.route66.link66+xml
.rss, .xml|application/rss+xml
.shf|application/shf+xml
.st|application/vnd.sailingtracker.track
.svg|image/svg+xml
.sus|application/vnd.sus-calendar
.sru|application/sru+xml
.setpay|application/set-payment-initiation
.setreg|application/set-registration-initiation
.sema|application/vnd.sema
.semd|application/vnd.semd
.semf|application/vnd.semf
.see|application/vnd.seemail
.snf|application/x-font-snf
.spq|application/scvp-vp-request
.spp|application/scvp-vp-response
.scq|application/scvp-cv-request
.scs|application/scvp-cv-response
.sdp|application/sdp
.etx|text/x-setext
.movie|video/x-sgi-movie
.ifm|application/vnd.shana.informed.formdata
.itp|application/vnd.shana.informed.formtemplate
.iif|application/vnd.shana.informed.interchange
.ipk|application/vnd.shana.informed.package
.tfi|application/thraud+xml
.shar|application/x-shar
.rgb|image/x-rgb
.slt|application/vnd.epson.salt
.aso|application/vnd.accpac.simply.aso
.imp|application/vnd.accpac.simply.imp
.twd|application/vnd.simtech-mindmapper
.csp|application/vnd.commonspace
.saf|application/vnd.yamaha.smaf-audio
.mmf|application/vnd.smaf
.spf|application/vnd.yamaha.smaf-phrase
.teacher|application/vnd.smart.teacher
.svd|application/vnd.svd
.rq|application/sparql-query
.srx|application/sparql-results+xml
.gram|application/srgs
.grxml|application/srgs+xml
.ssml|application/ssml+xml
.skp|application/vnd.koan
.sgml|text/sgml
.sdc|application/vnd.stardivision.calc
.sda|application/vnd.stardivision.draw
.sdd|application/vnd.stardivision.impress
.smf|application/vnd.stardivision.math
.sdw|application/vnd.stardivision.writer
.sgl|application/vnd.stardivision.writer-global
.sm|application/vnd.stepmania.stepchart
.sit|application/x-stuffit
.sitx|application/x-stuffitx
.sdkm|application/vnd.solent.sdkm+xml
.xo|application/vnd.olpc-sugar
.au|audio/basic
.wqd|application/vnd.wqd
.sis|application/vnd.symbian.install
.smi|application/smil+xml
.xsm|application/vnd.syncml+xml
.bdm|application/vnd.syncml.dm+wbxml
.xdm|application/vnd.syncml.dm+xml
.sv4cpio|application/x-sv4cpio
.sv4crc|application/x-sv4crc
.sbml|application/sbml+xml
.tsv|text/tab-separated-values
.tiff|image/tiff
.tao|application/vnd.tao.intent-module-archive
.tar|application/x-tar
.tcl|application/x-tcl
.tex|application/x-tex
.tfm|application/x-tex-tfm
.tei|application/tei+xml
.txt|text/plain
.dxp|application/vnd.spotfire.dxp
.sfs|application/vnd.spotfire.sfs
.tsd|application/timestamped-data
.tpt|application/vnd.trid.tpt
.mxs|application/vnd.triscape.mxs
.t|text/troff
.tra|application/vnd.trueapp
.ttf|application/x-font-ttf
.ttl|text/turtle
.umj|application/vnd.umajin
.uoml|application/vnd.uoml+xml
.unityweb|application/vnd.unity
.ufd|application/vnd.ufdl
.uri|text/uri-list
.utz|application/vnd.uiq.theme
.ustar|application/x-ustar
.uu|text/x-uuencode
.vcs|text/x-vcalendar
.vcf|text/x-vcard
.vcd|application/x-cdlink
.vsf|application/vnd.vsf
.wrl|model/vrml
.vcx|application/vnd.vcx
.mts|model/vnd.mts
.vtu|model/vnd.vtu
.vis|application/vnd.visionary
.viv|video/vnd.vivo
.ccxml|application/ccxml+xml,
.vxml|application/voicexml+xml
.src|application/x-wais-source
.wbxml|application/vnd.wap.wbxml
.wbmp|image/vnd.wap.wbmp
.wav|audio/x-wav
.davmount|application/davmount+xml
.woff|application/x-font-woff
.wspolicy|application/wspolicy+xml
.webp|image/webp
.wtb|application/vnd.webturbo
.wgt|application/widget
.hlp|application/winhlp
.wml|text/vnd.wap.wml
.wmls|text/vnd.wap.wmlscript
.wmlsc|application/vnd.wap.wmlscriptc
.wpd|application/vnd.wordperfect
.stf|application/vnd.wt.stf
.wsdl|application/wsdl+xml
.xbm|image/x-xbitmap
.xpm|image/x-xpixmap
.xwd|image/x-xwindowdump
.der|application/x-x509-ca-cert
.fig|application/x-xfig
.xhtml|application/xhtml+xml
.xml|application/xml
.xdf|application/xcap-diff+xml
.xenc|application/xenc+xml
.xer|application/patch-ops-error+xml
.rl|application/resource-lists+xml
.rs|application/rls-services+xml
.rld|application/resource-lists-diff+xml
.xslt|application/xslt+xml
.xop|application/xop+xml
.xpi|application/x-xpinstall
.xspf|application/xspf+xml
.xul|application/vnd.mozilla.xul+xml
.xyz|chemical/x-xyz
.yaml|text/yaml
.yang|application/yang
.yin|application/yin+xml
.zir|application/vnd.zul
.zip|application/zip
.zmm|application/vnd.handheld-entertainment+xml
.zaz|application/vnd.zzazz.deck+xml

Parameter
Description
Connection String

File System Connection Edit Screen


    • Related Articles

    • System Backup Wizard

      The Starfish ETL System Backup Wizard will walk you through a series of steps to create a complete backup framework for any system. The System Backup Wizard does not actually back up any data during this process, it only creates the tables and jobs ...
    • CSV Connector

      CSV Via Upload (in Cloud Designer) When you upload a new file, you need to clear the connector cache before the file will show in the Query Builder and before Origin Preview will work. If you run into any issues with the data being read in unexpected ...
    • Exchange Connector

      Overview The "Exchange (NEW)" connector is based on a driver from https://www.cdata.com/. Helpful documentation for using the "Exchange (v2)" connector can be found here: http://cdn.cdata.com/help/CEC/ado/pg_alltables.htm. This StarfishETL Connector ...
    • Import Starfish Map file from a locally stored *.SPD file

      Import Starfish Map file from a locally stored *.SPD file Step Snapshot Go to project and select the Import view Select Browse to import the *.spd file Select *.spd file from directory folder. Once the import is complete, the project will be added to ...
    • Excel Connector

      Establishing a Connection Connecting to Excel Data Sources The StarfishETL Excel Connector allows connecting to local Excel resources.   Browse to your desired Excel file on your local machine or on your network.  Please use UNC and not drive letter ...
